HTB-330 Steel+Bronze Casting Bushing
1/3
1/3

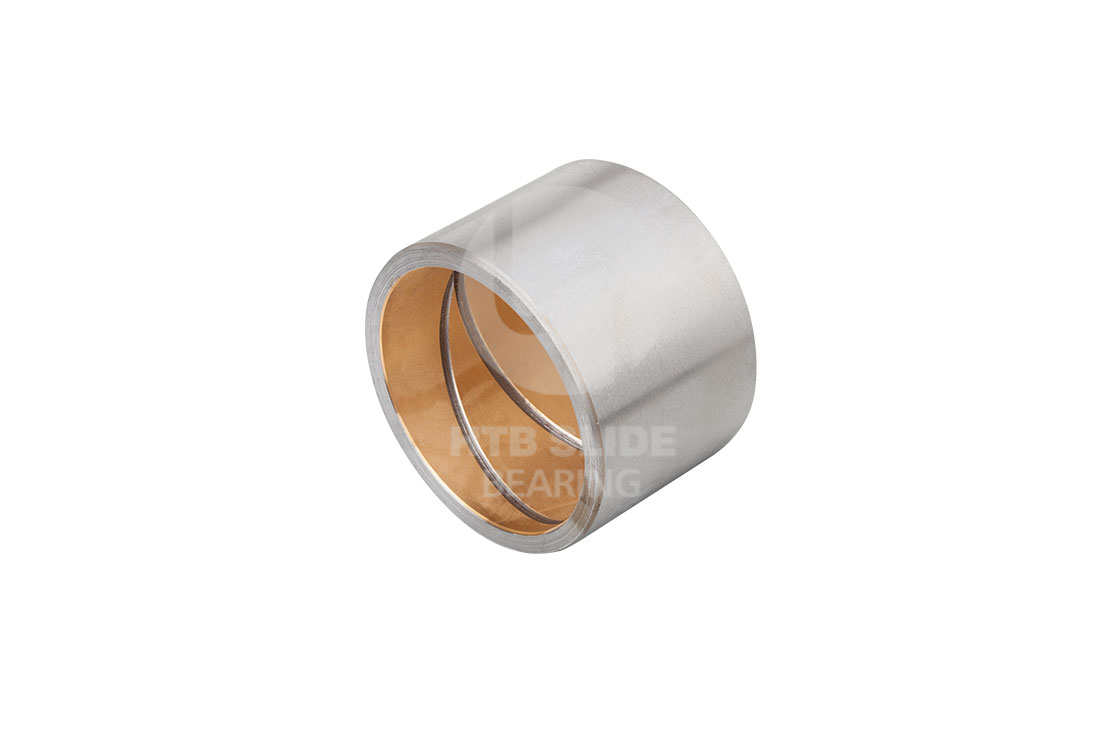

HTB-330 Steel+Bronze Casting Bushing
HTB-330 Steel+Bronze Casting Bushing
HTB-330 uses high-quality steel as the base, and the inner hole is covered with special wear-resistant copper alloy material. At the same time, according to customer requirements, regular oil grooves can be processed on the surface of copper table gold to improve the lubrication performance. This kind of material has the characteristics of small friction coefficient, good abrasion resistance, high dimensional accuracy, impact resistance and high temperature resistance.
PRODUCT DATA
| Performance | Related data |
|---|---|
| Steel base | ≥50HRC |
| Maximum static load | 50N/mm2 |
| copper | ≥80HB |
| Maximum dynamic load | 30N/mm2 |
| Maximum speed | 2m/s |
| Maximum PV value | 1.8N/mm2.m/s |
| Coefficient of friction | 0.03 - +0.20 |
| Temperature | -50~+250 |
